Firmware Verified Boot Crypto Specification

Abstract

This document describes the cryptographic primitives and building blocks used for implementing verified boot in the firmware. The document is primarily targeted at Google Chrome OS-based devices running Google-signed firmware and software. Chromium OS devices may use similar verified boot schemes with their own (non-Google-signed) chain of trust. We want to emphasize this does not prevent devices based on the open source Chromium OS project from having their own firmware. The goal here is to assure customers of Google Chrome OS devices that they are actually running Google Chrome OS.

Design principles and pitfalls

  • Since we are in firmware land, the cost of changing the architecture after an implementation is high! Cost varies from "unfixable" for the boot stub to "need a firmware update" for the writable firmware and the algorithm for verifying the kernel.
    • Choose a conservative and simple design.
    • Have the design reviewed by experts. (Review first, implement later.)
  • Security doesn't come for free. We want to minimize the performance overhead as much as possible.
    • In the context of this document, the main performance concern is minimizing time to boot, or more specifically, the time taken to pass control to a trusted Chrome OS kernel.
  • Use well understood cryptographic building blocks instead of designing new ones.
    • Cryptography is hard to understand, even harder to get right.
    • Use well known and studied crypto primitives (RSA, SHA, AES, etc.) and protocols (public-key signatures).


Background

The firmware is the lowest level of software that runs on a system. In Chrome OS devices, the firmware is responsible for initializing the main application processor along with RAM, embedded controllers, chipsets, etc. In certain architectures, e.g. ARM, a separate modem processor is responsible for initializing the main processor. Parts of the firmware are read-only (at the lower layers).  This code is baked into the firmware during production and can't be changed. The rest of the firmware is field upgradable. The proposed mechanisms for such updates are described in a separate document. At the boundary of read-only to read-write firmware, the verified boot mechanism (firmware-land) kicks in. It is responsible for verifying that the next piece of code is signed by Google for Google Chrome OS devices. The goal here is to provide a boot path to end users which provides assurances that they are running known good code.

Important note: To reemphasize the point made in the Verified Boot design document, we are not preventing users from running any operating system they please, only to provide a mechanism that guarantees that a Chrome OS device is running the authentic Google Chrome OS.

How cryptographic signature verification works

This section presents a small primer on how signature verification is designed to work in our context. We use public-key cryptography: each key is actually a keypair with public and private key components. Data encrypted by the private key can be decrypted by the public key and vice versa. In all cases, the private key component is known only to Google. The public key is used by the firmware for performing the verification. A simple implementation would be for Google to encrypt an entire r/w firmware component with the private key, and for the firmware to use the corresponding pre-baked public key to decrypt the firmware and continue execution (if decryption is successful). However, public-key cryptography is sloooow, and moreover, we are not interested in the confidentiality of the firmware component, only that any code we execute in the verified boot path is authenticated. Therefore, we use the concept of cryptographic signatures. Public-key signatures combine message digests (such as SHA-1) with public-key cryptography.

A message digest of a message m maps the message to a fixed size hash value H(m). A cryptographic message digest has two essential properties:
  • Collision resistance: Two different messages are highly unlikely to map to the same hash value.
  • Irreversibility: Given a hash value, it's computationally infeasible to generate a message m which hashes to that value.

Here are the steps for firmware verification:
  1. For a firmware component blob F, Google generates a signature S(F) RSA_privatekey(H(F)), where H is the message digest function.
  2. The firmware verification routine takes F and S(F) as input, computes H(F) and verifies that H(F) == RSA_publickey(S(F)).

The security of the above scheme depends on two key factors:
  • The firmware verification routine uses the correct public key on the attached signature to get the expected hash value.
  • Only Google can generate a signature that successfully verifies using the "correct" public key.

We ensure that the correct public key is used by putting the public key in the read only part of the firmware. It doesn't matter if it can be read by an attacker, since it only allows for verifying an existing signature. We ensure that the signature is generated by Google by keeping the private key known only to Google, so only Google can generate a valid signature on a blob of data.

Here's a table listing various hashing and signature verification algorithms, including their speed as measured by invoking "openssl speed" on a typical netbook.

AlgorithmSpeedNote
RSA-10240.4ms/verificationNIST recommends not to be used after 2010
RSA-2048
1.28ms/verificationNIST recommended for use after 2010
RSA-40964.5ms/verificationNIST recommended for use after 2010
MD5256MB/s*Considered Unsafe
SHA-1111MB/s*Recent attacks suggest its collision resistance is lesser than previously thought (80-bits)
SHA-25626MB/s*NIST recommended for use after 2010
SHA-51227MB/s*
* - 8192 byte blocks.

Root keys and signing keys

Since signature verification comes with an additional overhead, we can't simply choose to use the strongest available verification algorithm for the whole verified boot process. However, we need to start with a strong enough algorithm to protect Chrome OS devices for their expected lifetime. For long-term use, NIST recommends using at least RSA-2048 and SHA-256. Therefore, we plan on using a combination of a stronger root key and weaker signing keys. We will use a strongest available algorithm (within practical speed constraints) to sign an initial key. Subsequent stages of the verified boot will use the weaker (but faster) algorithms for verification.

If one of the weaker algorithms or signing keys used for verification of these subsequent stages is cracked/broken, a new firmware or software update can be issued that uses a different signing key and/or a stronger algorithm.

Preventing rollback attacks

To prevent rollback attacks, where an attacker may try to to update a Google Chrome OS device with an older signed firmware that has a known vulnerability, each signing key has a strictly increasing associated Key Version#. The read-only firmware writes the highest Key Version# so far into an NVRAM location, in the TPM chip. This NVRAM location is lockable, such that only the read-only firmware can write to it, and can't be overwritten by any other firmware component or the operating system. During the verified boot process, the read-only firmware refuses to pass control to a signed firmware block that uses a signing key with an index smaller than the highest seen so far. In addition, since we have two firmware copies, this index can be updated whenever min(Key#A, Key#B) changes. This allows the device to survive a failed firmware update. On successful boot with the new firmware, the previous copy of the firmware is overwritten by the new one, the highest signing key index is updated, and any further rollbacks are prevented.

In addition to the Key Version# associated with each key, each firmware update has an associated Firmware Version#. The R/O firmware also keeps track of this in a non-volatile location similar to the Key Version# to prevent rollbacks to an older R/W firmware. Note that these two numbers serve different purposes:
  • Key Version# prevents key rollbacks (use of an older invalidated signing key that might have been compromised to sign a firmware)
  • Firmware Version# prevents firmware rollbacks (use of an older signed firmware update that might have known vulnerabilities)

Speed and bottleneck considerations

Although public key signature verification is an expensive operation, we expect the main bottleneck to be hash computation of blocks of data that need to be verified. In addition, verification will likely happen just a few times for each final hash value that is computed. Given these tradeoffs, it's likely that we'll still be able to use the stronger verification algorithm (for example, RSA-2048 below) once we switch to using the signing key for verification, but we'll need to switch to a weaker hashing algorithm (SHA-1), that is, start with RSA-4096+SHA-512, then switch to RSA-2048+SHA-1. This tradeoff can be revisited and analyzed in more detail once we have some hard numbers from an actual verified boot implementation.

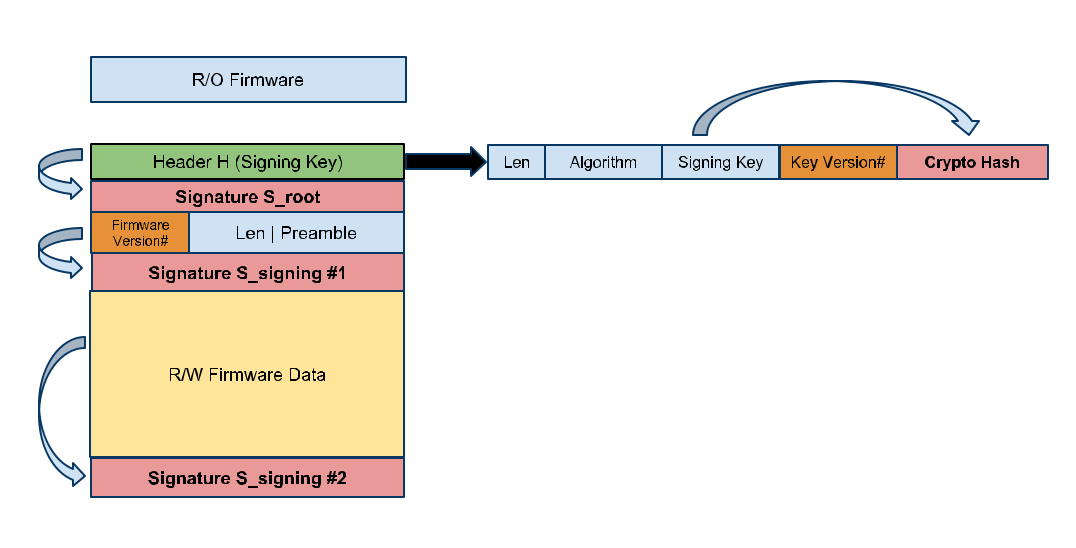

Putting it all together: Crypto Architecture




For Header H:
  • Length, is a fixed-width field and equals the length of H
  • Algorithm is a fixed-width field integer that specifies the key size and hashing algorithm to use for verifying signatures using the signing key.
  • Signing Key is the signing key used for the rest of the firmware.
  • Key Version# is the rollback index associated with the Signing Key
  • Crypto Hash is a fixed-width field that contains the cryptographic hash of the rest of the header H(Len || Algorithm || Signing Key || Key Version#).

Signature S_root = RSA_Sign(Root Key, H)

The signature for the R/W firmware is split into two:

  • Signature S_signing#1 = RSA_Sign(Signing KeyFirmware Version# | Len | Preamble)
  • Signature S_signing#2 = RSA_Sign(Signing Key, R/W Firmware Data).

This signature helps in verifying the length field and the Firmware rollback early in the verification process.

For rollback protection, we have a pair of indices: the Key Version# (K#) and the Firmware Version# (F#). K# is updated whenever the signing key is changed—either if it's past its lifetime (Y months) or if it has been compromised. F# is incremented with each update. Logically, the combination of K# and F# uniquely identifies the version of an update. The update process will refuse to update if either of the following conditions is TRUE

  1. K# ==  stored K#, but F#  < stored F#
  2. K# < stored K#

Having separate key version and firmware version rollback prevention indices allows for generating new firmware updates without the need to generate a new signing key each time (which in turn requires getting the root key out of secure storage). This way, firmware updates are protected against rollbacks even if the signing key stays the same.

The steps performed by the read-only firmware are as follows:

  1. Verify the signing key signature is valid
    - If RSA_Verify(Root Key, H) fails, Go to
    Step 7 (Failure).
  2. Verify that this is not a key rollback
    - If K# < Stored K#, go to
    Step 7 (Failure).
    - else, Stored K# = K#, lock Stored Key# to prevent write access
  3. Verify that this is not a firmware rollback
    If F# < Stored F#, go to Step 7  (Failure).
    - else, Stored F# = F#, lock Stored F# to prevent write access
  4. Determine signing key algorithm to use from "Algorithm." For now, let's assume we decide to go with RSA-1024 and SHA-1.
  5. From here on, the rest of the verification is performed using the signing key and algorithm
    - For example, To verify a firmware blob F, do RSA_Verify(Signing KeyF). If NOT, Go to Step 7.
  6. Success - Continue with kernel level verification
  7. Failure -If this is firmware-A, repeat above steps with firmware-B. If firmware-B is bad, go to recovery!!

Note that, for both the root key and signing key, only the public part of the key is exposed. This ensures that only Google can generate S_root and S_signing.

Kernel-level verification

Once the R/W firmware has been verified, the next step is for the R/W firmware to verify the kernel before passing control to it. There are a few possible options here:


  1. Use a different signing key just for kernel signing. This key must be verified by the R/W firmware signing key.
  2. Use the R/W firmware signing key for verifying the kernel.

The main disadvantage of option 1 is the extra verification step required for verifying the kernel signing key. In addition, a separate rollback key index must stored for the kernel signing key.


The main disadvantage of option 2 is that now any kernel update must be accompanied by a firmware update with a new signing key (for preventing rollback).

As a firmware update is much more time consuming and disruptive than a kernel update, we chose option 1 (use a different signing key just for kernel signing).

In addition, the kernel is stored on the disk and it needs to be retrieved by parsing the partition table. Currently, there is no cryptographic verification of the partition table. However, the firmware code does a strict checking of the partition table (e.g. ensuring there are no overlapping partitions) and outright rejects partition tables that do not look right.

Note also that since this happens in the R/W firmware, the verification mechanism can change over time and with autoupdates.

Lifetime of the root key

Since the root key is baked into the read-only firmware at manufacture, it can't be changed once a Chrome OS device leaves the factory. Since any update to this key requires changes during manufacture, these will be changed once every four years. Since the root keys have a much larger lifetime than the signing keys, they will be of higher strength (4096 bit RSA keys or higher). The signing key to use for pushing an update to a device can be determined via the SKU. Newer SKUs will use the newer root key chain of trust.

What crypto implementations need to be a part of the R/O firmware

Ideally, due to firmware size limitations, goals for minimal complexity, and the inability to update in the field, we'd like to limit the functionality implemented in the the read-only firmware to the bare essentials.

At the very least, the read-only firmware needs to implement the following:

  1. RSA Signature Verification (for combinations of various 1024-8192 bit key sizes and SHA-1/256/512 message digest algorithms)
  2. SHA-1/256/512 Hashing
  3. A way to write and lock a portion of the NVRAM such that it can't be written to by any other component

Items 1 and 2 are required to verify the signing key. Item 3 is required to prevent rollback attacks

The weaker (relatively) crypto algorithms used by the signing keys may be implemented in the R/W firmware. However, there are risks to consider here:

  1. The algorithm implementations on the R/W firmware also needs to be verified by the R/O firmware, a task that results in additional overhead.
  2. Additional complexity is required in the R/O firmware for memory mapping these algorithms for use by the rest of the firmware.

To avoid the additional complexity involved in having the algorithm implementations in the R/W firmware, we currently plan on having the R/O firmware implement all of SHA-1/256/512 and RSA-1024/2048/4096/8192. Although R/O firmware size may be a constraint, the variants within each class of algorithms (SHA-256 and SHA-512, for example) are similar, and there should be some opportunity for code reuse between them.

Other considerations

What key size is enough for the root key and signing key?

NIST recommends the use of RSA 2048/SHA-256 or higher as the signature algorithm for use after 12/31/2010. Our plan is to use a 8192-bit RSA key with SHA-512 for the root key signatures.

The security of RSA derives from the computational difficulty of factoring very large numbers into its prime factors. The best known current algorithm for factoring large numbers is the Number Field Sieve (NFS). The runtime of NFS scales as ec n^1/3 (log2 n)^2/3, where n is the size of the number in bits and c is typically 1.5-2.

For the root key, we plan to use a 8192-bit RSA key. Note that, based on the runtime scaling of the Number Field Sieve, it takes at least 1.429206 x 1024  more computational effort to factor a 4096-bit number than a 1024-bit number. As a reference, the general-purpose factoring record is for the 664-bit RSA200 number which took the equivalent of 55 2.2GHz Opteron CPU years for the sieving step of NFS and an additional 3 months on an 80 2.2GHz Opteron CPU cluster for the matrix steps.

For signing keys, we have considerable more flexibility, since the key size or the keys themselves can be changed with future system update. Since these keys will change/rotate often, we plan to use 1024-bit RSA keys which provides a good speed/performance trade-off.


RSA padding

RSA operations during signature operations are not directly performed on the raw cryptographic hashes but rather on a padded/extended version of the cryptographic hash. We intend to use the standard padding/extension function for this. There are two padding schemes specified by PKCS#1 v2.1 standard - PKCS1.5 and PSS. Although PKCS#1 recommends phasing out PKCS1.5 (certain attacks were discovered against faulty implementations) in favor of PSS, PSS is more complex to implement. PSS requires the use of a PRNG. So if PSS padding is used, a crypto-grade PRNG will also need to be implemented as part of the read-only firmware. Currently, we plan on using PKCS1.5 padding since its implementation is much simpler.

What is the TPM used for?

For verified boot, we do not use the TPM for performing cryptographic operations, since TPM chips are not necessarily crypto-accelerator devices, and there is no speed advantage. We use the TPM as secure non-volatile storage for preventing key rollback attacks. The TCG TPM standard (v1.2 rev103) includes two mechanisms that we may use for storing monotonically increasing integers in a runtime, tamper-resistant fashion:

  • NVRAM regions that may be locked and written to prior to TPM ownership assertion
  • Monotonically increasing counters

We use NVRAM regions in the TPM and write the counters to that space.  This area is only writable at firmware read-only boot time and during recovery mode.

Functional tests and hardware qualifications

For firmware vendors, we have a suite of functional tests to test their implementations. This includes testing crypto blocks like RSA, SHA, as well as crypto primitives like signature checking.

For hardware qualification tests, here are examples of tests we use:

  1. Root Key Verification Test: Provide firmware where the signing key cannot be verified by using the root key (S_root is invalid).
    Expected Output: Device should refuse to use the firmware, jump to Recovery.
  2. Rollback Prevention Test: Provide firmware where the signing key# is less or equal to S_high.
    Expected Output: Device should refuse to use old firmware, jump to Recovery.
  3. Signing Key Verification Test: Provide firmware where the verification of F using the signing key fails (S_signing is invalid).
    Expected Output: Device should refuse to use the firmware, jump to Recovery.

More details can be found in the documentation for the Semi-automated Firmware Testing Framework (SAFT).
