Omnibox/IME Coordination

Implementation Status Update

  • Implemented in M17 on Win
  • Implemented in M18 on Chrome OS
  • Implemented in M29 on Win (Views implementation, IMM32)

Objective

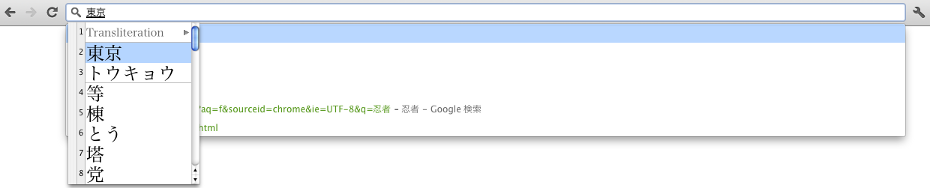

We aim to fix the poor interaction between Chrome’s omnibox and the IME (Input Method Editor). The main problem is that IME windows overlap with the omnibox autocomplete results, as pictured below.



This looks unpolished and may be confusing and frustrating to the user.

Proposed Solution and Plan

Our proposal is to close the omnibox autocomplete popup window whenever the IME candidate window is open.

We can easily detect the candidate window on Windows and Chrome OS, so we will implement this design on those platforms. It is likely not possible on Mac and Linux.

After this design is implemented, we can consider a more sophisticated one. We would most likely experiment on Chrome OS, as we have the most control on that platform. If we implement and enjoy very good reception, we can consider further effort to implement on other platforms.

Background

The Omnibox

Based on its current input, the omnibox pops up autocomplete results, suggestions that may come from browsing history, bookmarks, or Instant Suggest. There is also inline autocomplete, which is an autocomplete result inserted into the text edit area itself. Inline autocomplete seems to be already disabled during IME composition as it would otherwise interfere with composition (see http://crbug.com/64983 and http://crbug.com/75651).

The IME

An IME is used to input text in a more complex manner than the typical direct mapping of keystrokes to characters. For instance, Japanese has too many characters to fit on a keyboard. Using a Japanese IME, the user inputs a reading (“fujisan”) then converts them to the desired characters (“富士山”). The IME presents conversion candidates in a window and in general can present arbitrary UI elements that the application process has little control over.

Text that has been generated through the IME but not yet committed is called composition text (or pre-edit text).

The Problem

In Chrome as of M15, the IME’s UI elements are drawn over the omnibox autocomplete results, resulting in a poor user experience. Specific issues include the following:
  • The autocomplete results can’t be seen, but are rendered as if the user is expected to make use of them.
  • The autocomplete results appear to be interactive but are not. IME handles keystrokes, so up/down arrows navigate through IME windows instead of autocomplete results.
  • The user cannot easily uncover a partially obscured autocomplete result that looks interesting. The correct method, pressing Enter, commits and dismisses the IME, but in practice this is not very intuitive, and requires the user to delete and retype the query if the suggestion is ultimately rejected. Instead of Enter, the user may try to use the mouse (but clicking immediately activates the result instead of making it visible) or hit Escape (this closes that particular IME window but also alters the composition text, so the results change).
  • Navigating through the IME candidates alters the autocomplete results, since the composition text changes. The user notices these results are updating as if they are useful but cannot use them. This feels unpolished.
IME and Omnibox Instant interaction may also be problematic. Instant is triggered immediately whenever the composition text is updated, which may feel noisy and sluggish to the user.

Requirements and Scale

Ideally, we would fix the current poor interaction on all platforms, but our solution is likely implementable only on Windows and Chrome OS.

We would also prefer the solution to work for all IMEs and all languages. However, universal coverage is not an absolute requirement, and we can keep a solution that works for a large enough group of users and doesn’t introduce new problems to others.

If we attempt a more sophisticated design, we would probably implement on Chrome OS first, with an eye to implementing on other platforms if it has good reception. Ideally, we wouldn’t have different behavior on each platform. But it may be the case that only Chrome OS can be saved, due to the control we have on that platform.

Alternatives Considered

We considered several design alternatives. These included the following ideas:
  1. Place the autocomplete popup below the IME window - This solves the overlap but can be unsightly as the IME window can be vertically large. Also, two focal points on screen (autocomplete results and IME candidates) is generally bad UX-wise. There are also questions like whether you switch between the two UI elements.
  2. Place IME window inside the autocomplete popup - This is about the same as 1.
  3. Remove IME panels - This is invasive and may render some IMEs unusable.
  4. Integrate IME suggestions/candidates with autocomplete results - This is hard implementation-wise. Some IMEs might not expose their suggestions/candidates in a usable way. We'd have to handle the IME UI ourselves.
  5. Request IME use compact/horizontal mode - This is more of a wish as most IMEs don't have such a mode.
  6. Keep autocomplete results always visible but greyed out during IME composition - Some people find this ugly. Also, same issues as 1.
  7. Use inline autocomplete during IME composition but not autocomplete popup - This solves overlap but loses multiple autocomplete results.
However, these have both serious implementation difficulties and UX concerns. Implementation difficulties arise from the limited control over the IME which varies by platform. Furthermore, altering the IME’s native UX risks confusing and annoying the user.

Thus the design and implementation costs are high. If we were to choose one of these solutions, we risk sinking much effort into a solution that might not be usable. Perhaps it would work only for some IMEs or break on future versions of IMEs. Or, it may be implemented and ultimately be poorly received by users.

Another idea is to always close the autocomplete popup during IME composition. However, this is too aggressive. It would prevent users from making use of autocomplete during the input phase before character conversion (for Japanese, when inputting kana before converting to kanji/kana). It would also make little sense for IMEs which usually do not have a composition window open, such as Korean IMEs.

For reference, Firefox and IE9 seem to always close their suggestions popup during IME composition, but we haven’t looked into this extensively.

Detailed Design

On Windows, we can detect the candidate window using composition attributes or WM_IME_NOTIFY/IMN_OPENCANDIDATE and IMN_CLOSECANDIDATE messages. When the candidate window is open, we suppress the autocomplete popup. The autocomplete results should be fetched anyway, to be displayed immediately when the candidate window closes.

This only detects the candidate window; some IMEs may display windows other than the candidate window, such as Google Japanese Input, which displays a suggestion window. But we are OK with allowing such popups, as they are not the common case, and removing them might be overly aggressive anyway.

We can also choose whether to enable or disable Instant Search during conversion.

UMA Metrics

We believe our design is a better UX, but want some way to confirm this. At least, we must confirm that it is it rare that an autocomplete result is used while candidate window is open. Unfortunately, getting UMA metrics like the number of times an autocomplete result was selected is impossible, as Chrome's UI design is such that an item from the dropdown is always selected. We still need ideas for measuring the impact of our change.

Links

  • Chromium bug 2924 - Don't let IME candidate window overwrite the autocomplete popup
  • Chromium bug 38450 - Omnibox autocomplete behavior for Korean is less than optimal (related, but this design doc doesn’t affect this bug)
  • Chromium bug 245578 - IME candidate window overlaps Omnibox suggest.
