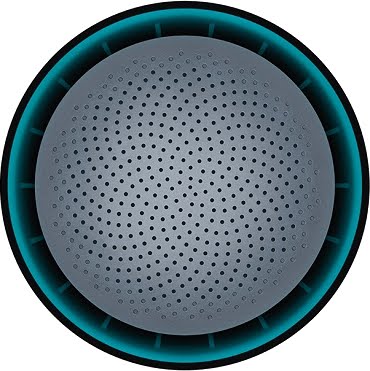

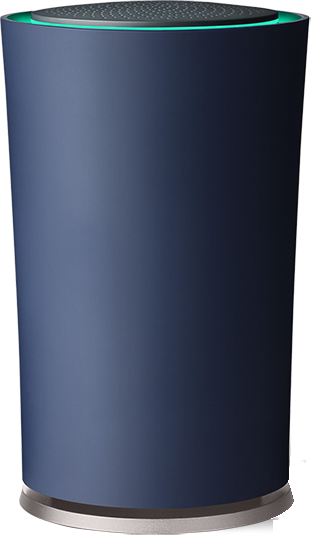

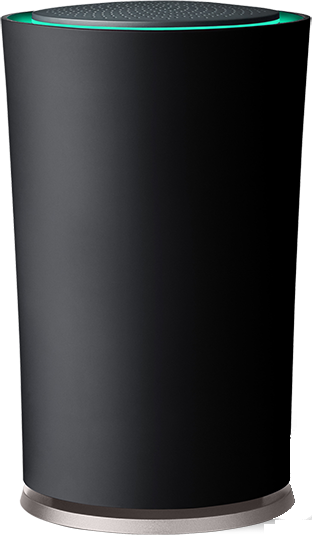

TP-LINK OnHub TGR1900
Introduction
This page contains information about the TP-LINK OnHub Router TGR1900, an OnHub WiFi router. that is interesting and/or useful to software developers. For general information about getting started with developing on ChromiumOS (the open-source version of the software on the Chrome Notebook), see the ChromiumOS Developer Guide.
Specifications
- CPU: Qualcomm Krait IPQ8064 (ARM A9) dual core 1.4 GHz
- RAM: 1 GiB DDR3 (Not upgradeable)
- Disk: 4 GiB eMMC (Not upgradeable)
- USB 3.0
- 1 USB Standard A port
- Connectivity
- WiFi aux 802.11 a/b/g/n/ac 1x1
- WiFi 2.4 & 5 GHz 802.11 b/g/n 3x3 with smart antenna
- Ethernet WAN 1 port 10/100/1000 Mbps
- Ethernet LAN 1 port 10/100/1000 Mbps
- Size: 7.5in x 4.1in x 4.6in
- Weight: 1.9lb
Firmware
This device uses coreboot and
Depthcharge
as a payload to boot the system. You can find the source in the ChromiumOS
coreboot git
tree
and the ChromiumOS depthcharge git
tree
in the firmware-storm-6315.B branches.
