Most websites on mobile devices are painfully janky. The problems are obvious and everywhere, but it can be challenging to isolate janky behavior and understand its cause. This sort of performance investigation is not a very widely known practice, and often involves advanced tools such as Chrome’s tracing. This article seeks to provide an example of jank identification and triage.
There’s very little explaining the “why” of anything here, just examples of jank (including tools used to identify it and any conclusions). Therefore it’s highly recommended to start by reading the how to bust jank with frame viewer, anatomy of jank and the rendering critical path articles before reading on; otherwise this is unlikely to prove helpful.
The Verge recently launched a responsive mobile website. It’s a nice success story for the mobile web. Unfortunately in Chrome for Android the UX is a little lacking, so let’s dig into it as an example.
Let’s start with www.theverge.com, the home page.
Symptom: Frequent checkerboarding on scroll
Scroll halfway down the page. Then, with the finger held down, scroll up and down in a small area. These small movements back and forth should be simple composited scrolls that leaves the page content all in texture memory, since the area being scrolled is small. But unfortunately we can see visible checkerboarding during these movements (the patches of the screen being slowly filled in).
There are a couple possible explanations for this: either (a) something’s being invalidated during the scroll and requiring re-rasterization, or (b) Chrome is out of VRAM (or thinks it’s out of VRAM) and is discarding the tiles in texture memory as soon as they’re off-screen.
To dig into why this is happening, we can start with the Dev Tools timeline. Here’s a timeline recording of that quick movement back and forth:

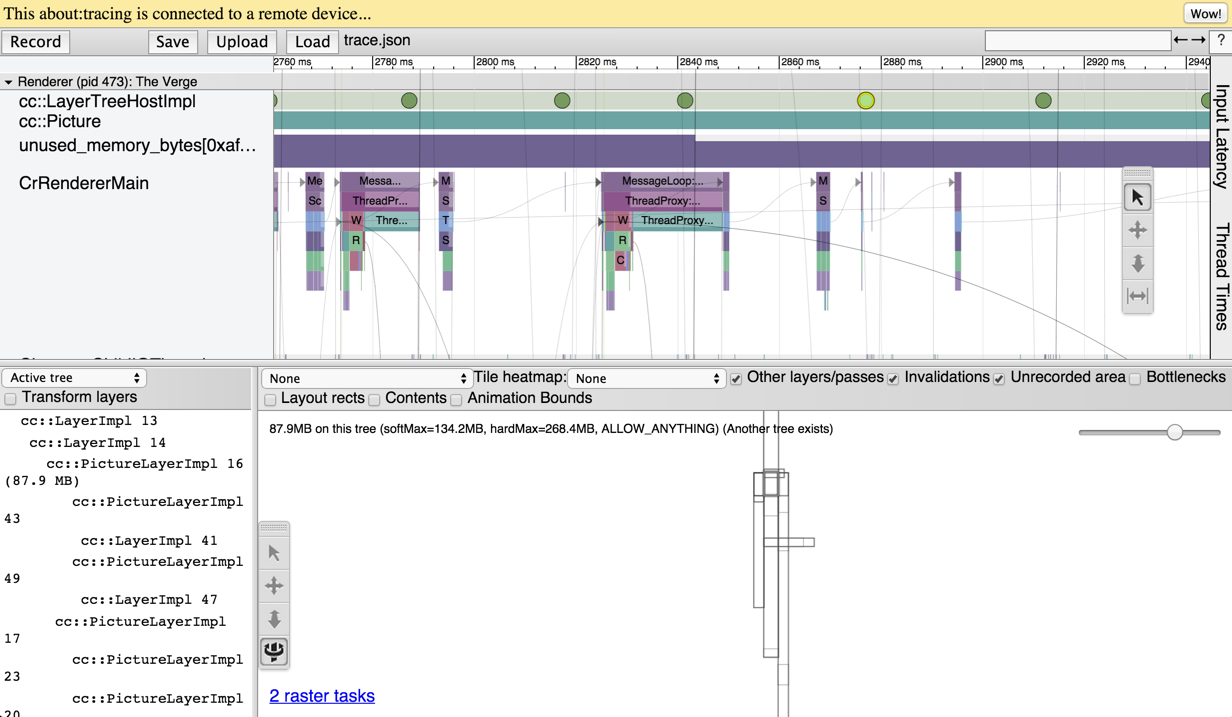

Where the Dev Tools timeline fails to tell us anything, we can turn to tracing’s Frame Viewer. Here’s a frame viewer trace of the same movement:
This is zoomed in on a part of the timeline where the scroll is happening (higher up in the tracing timeline you can see “InputLatency:GestureScrollUpdate” events). Note, significantly, that there appear to be no invalidations! This is easier to see if you disable “contents” in the layer tree viewer pane and zoom way out:
There aren’t any invalidation rects. The lack of invalidation rects indicates that Chrome itself is throwing out content tiles for some reason. This will happen on scroll, but it shouldn’t happen so soon after the tiles are off-screen on small scroll in a localized area.
To get visibility into what the tile manager is doing, we can turn on coverage rects in the frame viewer. In the top dropdowns enable “coverage rects” and for the tile heatmap select “Is using GPU memory”
Now we can see what content tiles are actually resident in GPU memory on any given frame. Stepping through the frames of the scroll, you can see that there’s a horizontal layer that goes from having it’s content resident in memory (all content tiles are dark green) to losing it (all a content tiles become white with red outlines).
This may simply be the reality of memory constraints, but it also might be a legitimate bug in tile prioritization. Particularly, it’s suspicious that there are tiles much further away from the viewport that are still resident in memory -- this indicates suboptimal resource management.
Conclusion: file a Chrome bug with these findings, crbug.com/412436
Symptom: Tap delay on menu button
The cause of the jank is immediately apparent: note the huge paint block after the input events are processed.
(Also note the mouse input events, even on a phone, because mouse events are by default emulated; the page could skip this work by not listening for them if there isn’t a mouse.)
Turning on “compositor layer borders” under the Dev Tools “rendering” menu might make it clear why this invalidation happens.
We can confirm this hypothesis with Frame Viewer. Here’s the layer tree just before the mouse tap:
And here’s just after:
It’s very subtle, but you can see that the layer tree is actually different -- layers 73 and 74 have been replaced by layer 79, at the bottom of the list.
Enabling the invalidation rects, we can see the large invalidation corresponding to that long paint from we saw in Dev Tools also appearing in the frame where the layer tree changes:
There are essentially two problems here. One is that the invalidation is happening at all, which is under the control of the site (avoiding invalidation is tricky but possible, in this case, by having the right layers already set up before the animation begins).
The other problem is that the rasterization takes such a comically long time. This is also somewhat under page control, since they could simplify the CSS, but Chrome should really render faster. This isn’t even worth a Chrome bug, though, because we know the answer here is to use Ganesh for faster rasterization. This page is still blacklisted for now, but if we force it on in about:flags we can see the paint time drop dramatically:
Symptom: Grabbing and sliding menu frequently becomes unresponsive
When the menu is out, grabbing the side of it allows the user to slide it in and out. Frustratingly the menu frequently becomes stuck, though, and unresponsive.
First investigation is just a Dev Tools timeline recording of the interaction:
The timeline recording shows that the system is actually running fine (i.e. is responsive and not bottlenecked). Touch moves are getting handled consistently by the browser.
Conclusion: This is actually an application bug where touches outside of the drawer area mid-touch-stream don’t update the drawer position.
Symptom: Delay before releasing menu to let it animate back in
After sliding the menu around, releasing it causes a hitch before the drawer animates back to a hidden state.
As usual, start with the Dev Tools timeline:
Note that whole-document layout right after the touchend event. It isn’t possible to say anything conclusive from just the timeline, but it’s a good guess that this is the root cause of the problem since the layout will probably invalidate the whole document.
One step before that layout is the recalc style causing it:
A class being removed (via jQuery). The JS is minified so we can’t tell much more meaningfully from the stack trace or the JS itself, but if we had unminified sources it would become obvious which line of JS was changing CSS and causing the invalidation.
Note that we can tell that the whole document was invalidated, rather than just part of it, because the subsequent paint events cover every part of the screen. Expanding the paint, we see events for tiles on the main document as well as all other layers:
If we look at this with frame viewer, we can see different layer trees before:
Note the additional layers 82 and 83 at the bottom, plus a bunch of the layers in the middle were reparented.
Conclusion: This is a double-sided issue just like the jank on menu tap: on the one hand it’s an application bug, in the sense that it could technically be worked around, but on the other hand Chrome could be made smarter not to invalidate these layers (especially those that are just reparented). Enabling Ganesh on this page will also make those invalidations much less painful. Speculatively file crbug.com/412551 for the reparenting-of-existing-layers question.
Symptom: Slow, unresponsive comment display on articles
Moving past the home page, let’s look at one of the articles. Randomly picking this one:
That link is to an anchor at the comments section. After the page is finished fully loading, tap “read them” to see comments.
Try scrolling or doing anything right after tapping “read them.” Note the page is completely non-responsive during the comment load.
Using the Dev Tools timeline trace, you can see that this is all load-related jank:
The app could theoretically improve this by changing the way it populated the DOM. Looking at the call stack for these it’s largely performed by their framework’s templating (backbone.js), though, so it probably won’t be easy to change:
Unfortunately because all of this loading is done by script there’s also no obvious way for Blink to yield during these many calls, although this might make for an interesting discussion; the ambitious might consider filing a bug here.
More obviously problematic is the huge style recalculation block that comes afterward, which weighs in around half a second. This is worth a bug so at least the pattern is understood: crbug.com/412558.
When investigating a janky site there are almost a handful of ways Chrome could be behaving better and a handful of things the site could be doing better. Staring hard enough at nearly any page usually yields a plethora of both; jank is all over the place on the web (particularly the mobile web).
Filing good bugs usually means making sure to very narrowly and reproducibly specify the interaction you want to improve, and then attaching traces of that interaction. Getting the bug looked at usually means getting in front of the right people’s eyes and labelling it correctly, but there aren’t any good rules for that.
That’s all for this example. Happy hunting!
